Features Core Technology Machine structure IOT Technology

Features

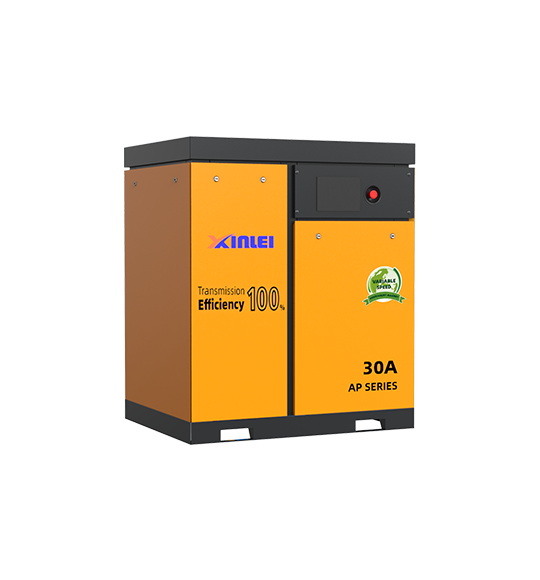

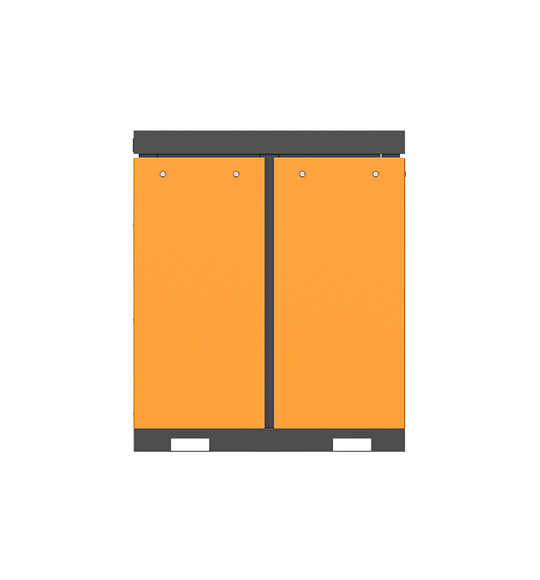

One-piece structure design

One-piece fully enclosed structure, highly integrated, compact size, does not occupy space.

Direct-connection technology

No intermediate transition parts, such as center bracket, coupling, pulley, gear and other coupling parts, zero transmission loss, transmission efficiency of 100%.

Personalized control system

Equipment operating status at a glance, real-time operation and supervision of the monitoring system.

Air-cooling high-efficiency permanent magnet motor

No rotor slip, no electrical excitation, no base wave iron and copper loss in the rotor and less heat generation, reducing the stator current and stator resistance loss.

Core Technology

High-efficiency air-cooled permanent magnet motor

Good cooling effect, unique heat dissipation design, lightweight, convenient maintenance, permanent magnet high efficiency. Its efficiency is 5%-8% higher than the same capacity asynchronous motor.

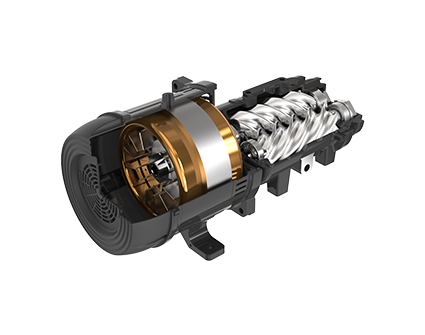

Coaxial integrated design

Adopting the design that the host and motor share the same shaft, there is no need for intermediate transitions such as center bracket, couplings, pulleys, gears and other connecting parts, so the transmission loss is reduced to zero and the transmission efficiency is 100%.

Energy-saving profile

Through the in-depth analysis of energy-saving demand and the continuous optimization of product structure, Xinlei's technical team has continuously upgraded the V series of profiles based on years of technical accumulation. This profile has become one of the more energy-efficient profiles in the screw profile industry with its high volumetric efficiency, reasonable drive contact points, and small area of the leakage triangle on the exhaust side.

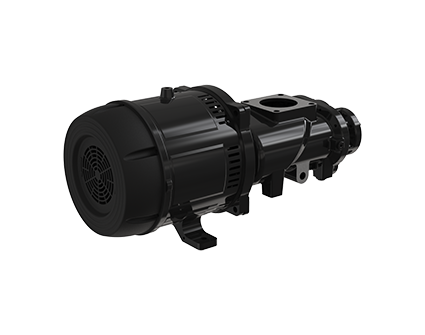

High-efficiency screw air-end

The mainframe adopts a new generation of asymmetric profile, 5:6 spiral rotor, technical upgrade from line seal to belt seal to improve the efficiency of air production, large rotor diameter and low rotational speed to ensure the air-end with low noise and long service life.

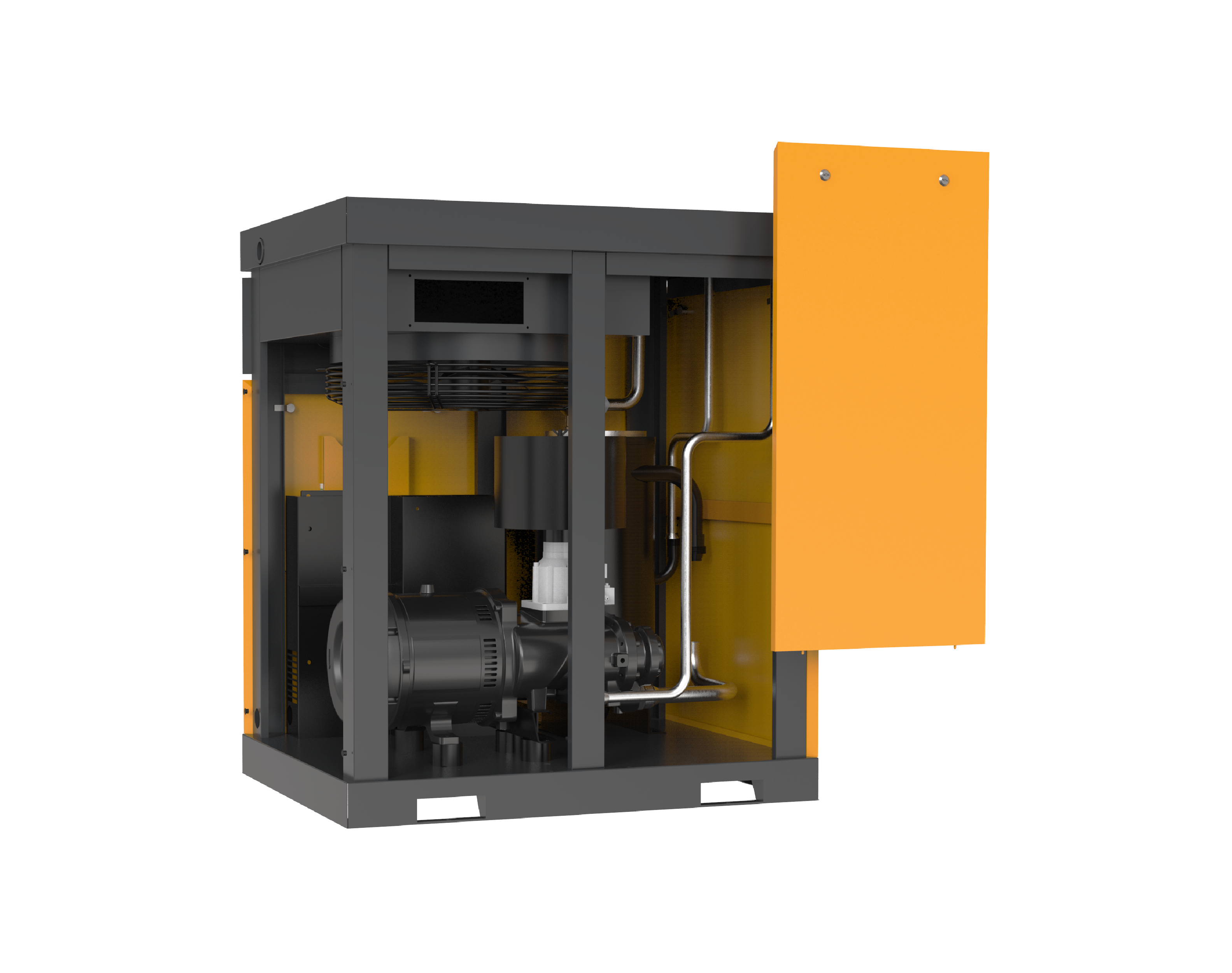

Machine structure

High-efficiency filtration system

- Efficient oil and gas separator so that exhaust oil content is less than 3ppm;

- High-efficiency oil filter, filter out impurities in lubricating oil, provide clean lubricating oil for the rotor and bearing of the head;

- High-efficiency horizontal air filter, filter the dust impurities in the inhaled air so that the rotor, bearing, etc.free from damage.

High efficiency air-cooling permanent magnet motor

-Good cooling effect, unique heat dissipation design, lightweight, convenient maintenance, high efficiency permanent magnet. Its efficiency is 5%-8% higher than the same capacity asynchronous motor.

-Adopting the design that the air-end and the motor share a common shaft, no need for intermediate transition parts, such as: center bracket, coupling, pulley, gear, etc., the transmission loss is reduced to zero, and the transmission efficiency is 100%.

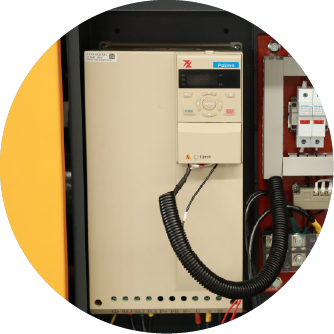

High efficiency inverters

- Adopting famous brand inverter with high stability and reliability;

-Provide smaller algorithm for high speed rotation;

-High-speed rotation function to save energy by adjusting frequency (HZ).

Intelligent Operation Panel

-Equipment digital intelligence: Through IOT technology, real-time monitoring of equipment data, fault proactive alerts, to help manufacturers from the production of “dumb” equipment to the upgrade of intelligent equipment;

-Service Digital Intelligence: Based on IOT technology, it can realize the closed-loop service of remote inspection, diagnosis and repair and upgrading of equipment.

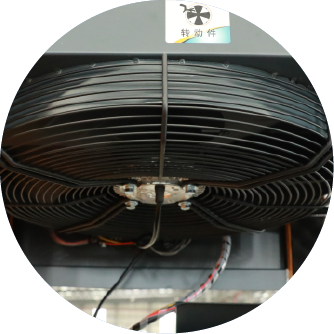

High Performance Cooling Systems

-High heat dissipation efficiency ensures 24-hour continuous operation in high temperature and high humidity environments.

IOT Technology

The cloud platform can record and provide the operating status and operating parameters of the wind turbines bound to the platform, as well as perform fault alarm and data recording analysis. Users can log in to the platform to realize remote monitoring and energy-saving settings management, enabling users to realize real-time equipment management. At present, the IoT cloud platform provides ANDRIOD, IOS, and PC clients, and open interfaces to link with third-party software such as ERP, providing users with more possibilities.

Statistical analysis of gas data to help enterprises make business decisionsStable air pressure, scientific energy saving of the wholeUse gas on demand to avoid wasting energyEquipment operation daily records, maintenance and daily management are more convenientReal-time monitoring of energy consumption, real-time data collectionVisualize equipment running status and view real-time working statusEquipment remote management, intelligent joint control
