Features Product Comparison Core Technology Machine Structure IOT Technology Application Scenarios Product Recommendation

Features

High efficiency Energy saving

Compared with tradition Roots blower, it can reduce power consumption by more than 30%.

Simple operation Intelligent control

Intelligent, user-friendly touch screen, with 5 operating modes and 5 protective functions.

Low noise No vibration

Noise below 80 dB, no vibration, pro-environment, no foundation or anchor bolts required.

No lubrication Maintenance free

100% oil-free air-floating bearing system to avoid secondary pollution, no need for regular maintenance and replacement of bearings.

Highly integrated Easy to install

The whole machine is highly integrated, small in size, light in weight and easy to install.

Long life Semi-permanent

Using air suspension bearing technology,semi-permanent design for more than 20 years, the efficiency does not decline during the life cycle.

Product Comparison

Product

Compress mode

Flow regulation range

Surge

Bearing type

Bearing life

The motor type

Motor starter

Noise(dB)

Vibration

Lubrication

Speed

Working condition

adaptability

Environmental

requirements

Magnetic Levitation Centrifugal Blower

centrifuge

45-100%

have

Magnetic suspension bearing

More than 20 years semi-permanent

centrifuge

45-100%

Yes

Magnetic bearing

20 years

High speed permanent-magnet synchronous motor

Variable frequency start

70-80dB

100% lubricant-free

10000-50000rpm

Need more ideal and stable

working conditions

High environmental requirements for dust, humidity, etc

Roots blower

Volumetric

Unable to adjust

Antifriction bearing

1～2 years

Induction motor

hard to start

>100dB

very badly

Replace the grease or oil periodically

≤3000rpm

For changing working conditions, the performance can remain stable

In a harsh environment with higher dust and humidity,fault tolerance is higher and more reliable

Core Technology

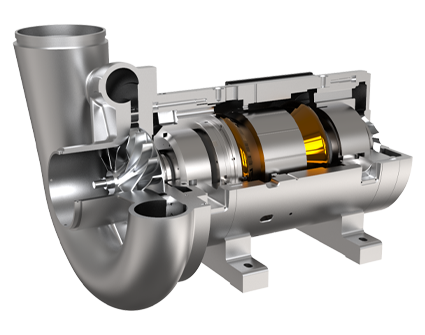

High Speed Permanent Magnet Motor

Using high-efficiency permanent magnet synchronous motor (PMSM), the efficiency is 96%;

The impeller is directly connected to the shaft, and the power transmission efficiency can reach 100%;

The aerodynamic engineering technology, the speed can reach more than 100,000 rpm;

The insulation grade is H class (Maximum temperature resistance 180°C).

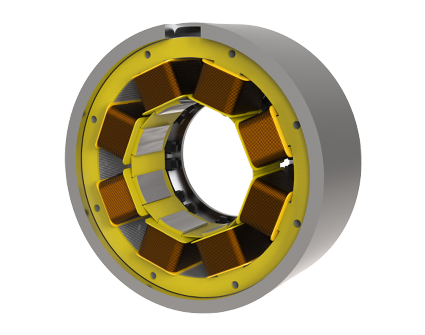

Magnetic Bearing

Five degrees of freedom magnetic levitation bearing with 8 sensors.

The sensor signal processing frequency is 10,000 times per second. The rotor axis position is precisely controlled;

FE optimizes magnetic design and minimizes eddy currents.

High load capacity up to 10 KN radial and 20 KN thrust.

Rotor unbalance compensation and dynamic support stiffness

No contact. Now wear and no lubrication.

Sensor

Reliable sensor technology ensures the stable operation of the whole blower’s magnetic suspension bearing system.

Induced current or vortex current.

One sensor unit(3 displacement, 1 rotation) standby pulse sensor has four induction channels.

Low noise and high resolution design. Integrated protection shield external magnetic fields.

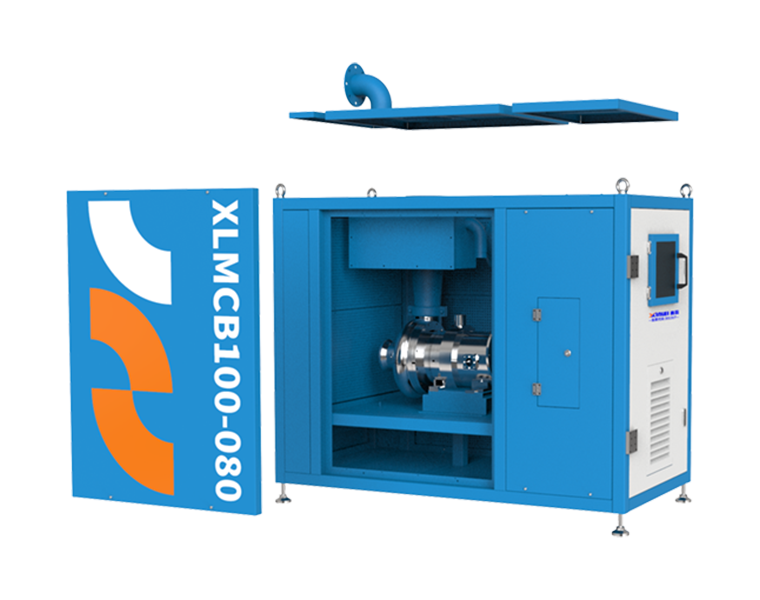

Machine Structure

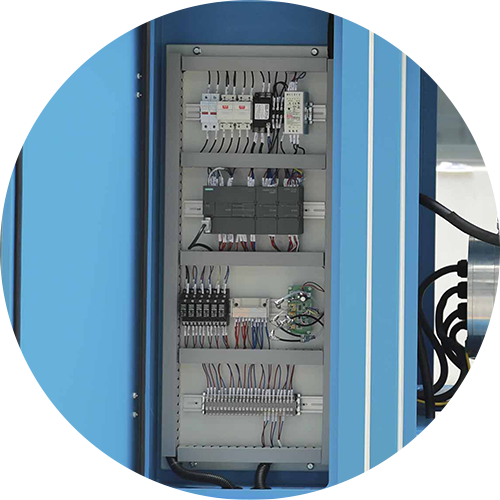

PLC Electronic Control System

-Adopt international brand PLC. Real-time monitor the system operation data and trajectory;

-Multiple protection and early warning functions.

Permanent Magnet High Speed Engine

-The PMSM permanent magnet synchronous motor is optimized for high speed rotation. The efficiency can reach more than 97%. The inverter can be used for precise speed control;

-Precision machined ternary flow impeller;

-Five degrees of freedom magnetic bearing;

-Liquid cooling/air cooling mode.

High Efficiency Inverter

-Adopt well-known brand inverter. High stability and reliability；

-Provide a minimization algorithm for high speed rotation；

-By adjusting the frequency(HZ) to achieve the high speed rotation function of saving energy.

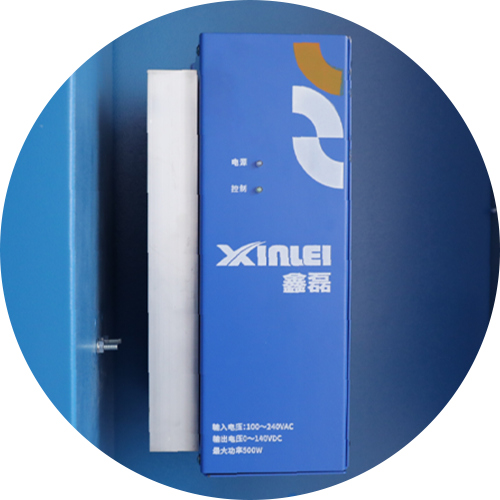

Magnetic Bearing Controller

-Full digital controller;

-Superior damping function;

-Multifunctional monitoring capability;

-Efficient service interface.

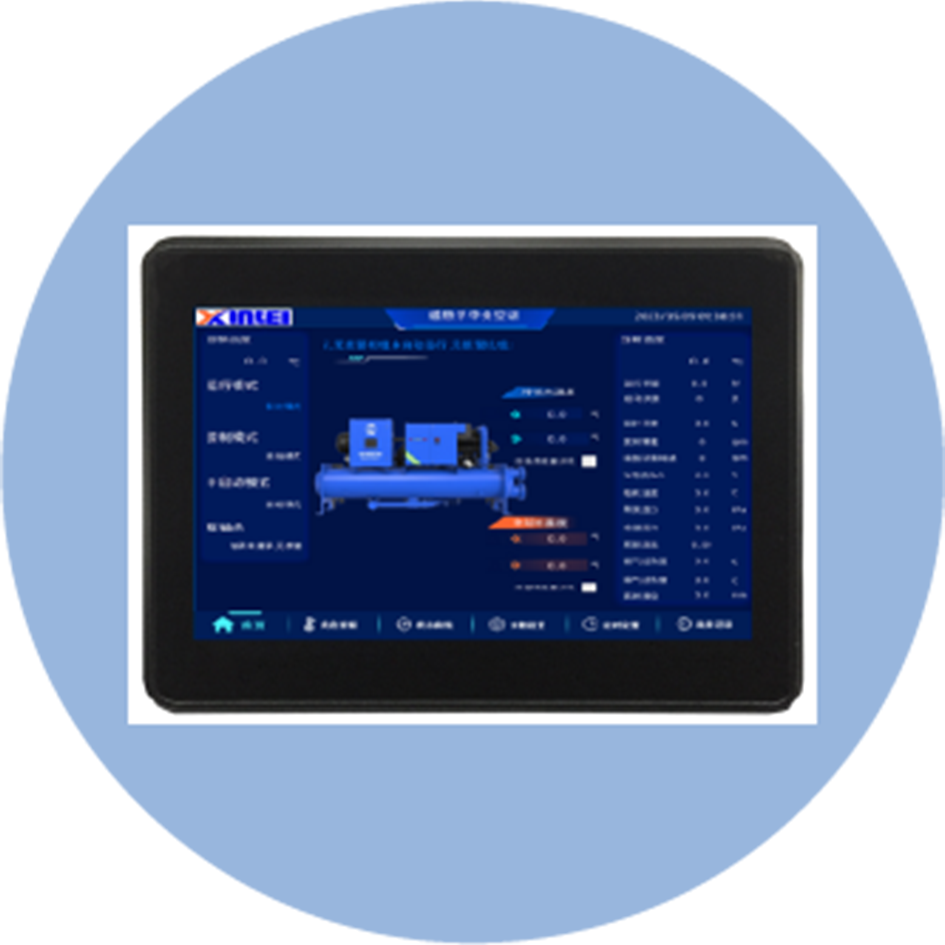

Intelligent Operation Panel

-The touch screen monitors the operation of device in real time；

Intelligent remote control；

-Automatic fault alarm. Easy to analyze the cause of fault.

IOT Technology

The cloud platform can record and provide the operating status and operating parameters of the wind turbines bound to the platform, as well as perform fault alarm and data recording analysis. Users can log in to the platform to realize remote monitoring and energy-saving settings management, enabling users to realize real-time equipment management. At present, the IoT cloud platform provides ANDRIOD, IOS, and PC clients, and open interfaces to link with third-party software such as ERP, providing users with more possibilities.

Statistical analysis of gas data to help enterprises make business decisionsStable air pressure, scientific energy saving of the wholeUse gas on demand to avoid wasting energyEquipment operation daily records, maintenance and daily management are more convenientReal-time monitoring of energy consumption, real-time data collectionVisualize equipment running status and view real-time working statusEquipment remote management, intelligent joint control
